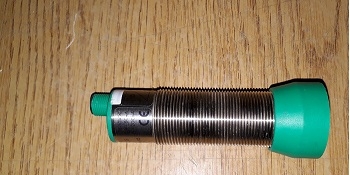

Model: UB4000-30GM-E4-V15
Switch output
5 different output functions can be set
Program input
Synchronization options
Deactivation option
Temperature compensation
Insensitive to compressed air
Sensing range 200 ... 4000 mm
Adjustment range 240 ... 4000 mm
Dead band 0 ... 200 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 85 kHz
Response delay approx. 325 ms
Operating voltage 10 ... 30 V DC , ripple 10 %SS
No-load supply current ≤ 50 mA
Output type 1 switch output NPN , Normally open/closed , programmable
Rated operating current 200 mA , short-circuit/overload protected
Voltage drop ≤ 2.5 V
Repeat accuracy ≤ 0.5 % of switching point
Switching frequency ≤ 1.5 Hz
Range hysteresis 1 % of the set operating distance
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Connection type Connector M12 x 1 , 5-pin
Degree of protection IP65
Material
Housing nickel plated brass; plastic components: PBT
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 180 g
