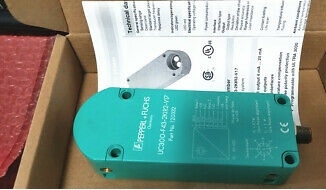

Model: UC300-F43-2KIR2-V17
Twin-head system
Sensing range 0 ... 300 mm
Dead band 0 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 390 kHz
Response delay minimum (EM; NONE): ≤20 ms (2 measuring cycles)
factory setting (EM, MXN, 5, 2): ≤60 ms (6 measuring cycles)
dynamic (EM,DYN): ≤30 ms (3 measuring cycles)

Operating voltage 10 ... 30 V DC
ripple ± 10 %SS
Interface type RS 232, 9600 bit/s, no parity, 8 data bits, 1 stop bit
Output type 2 relay outputs, 1 analog output 4 ... 20 mA
Resolution 0.2 mm
Deviation of the characteristic curve < 0.2 % of full-scale value
Repeat accuracy ≤ 0.1 % of full-scale value
Range hysteresis 0 ... 15 % programmable with ULTRA 2001
Load impedance current output:
≤ 500 Ω at UB ≥ 17V
≤ 200 Ω at UB < 17V
Contact loading 60 V DC/1 A (max. 24 W DC), ohmic
Life span electrical: 3 x 105 switching cycles at resistive load
(1 A / 24 V DC)
mechanical: 107 switching cycles
Ambient temperature 0 ... 70 °C (32 ... 158 °F)
Connection type Connector M12 x 1 , 8-pin
screen connected to pin 8
Degree of protection IP65
Material
Housing PBT
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
